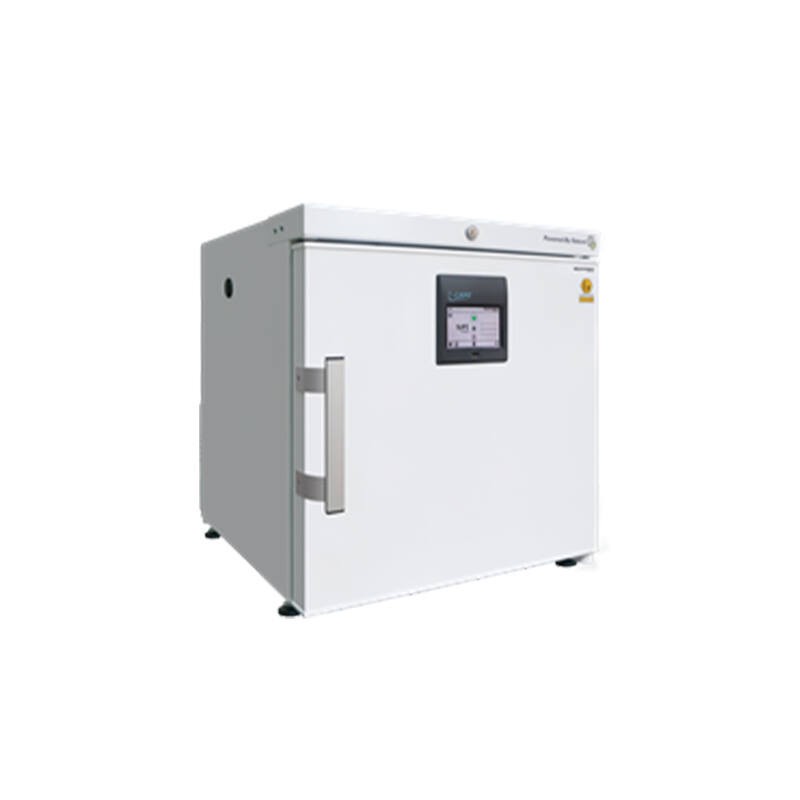

The MFZ90-25A is a compact biomedical freezer designed for the secure storage of temperature-sensitive products in laboratories, hospitals, pharmacies, or research facilities. Thanks to its 76-liter net volume and compact design, it can be installed on a benchtop, preparation table, or any confined space requiring quick and reliable access to frozen samples.
Features and Functions
The MFZ90-25A is equipped with a variable-speed compressor (Adaptive Cooling) and a No-Frost® dynamic cooling system, ensuring even temperature distribution throughout the chamber. Its adjustable range from -5°C to -25°C offers great flexibility for storing medications, vaccines, reagents, or biological samples.
Its i-Care controller with touchscreen allows precise temperature control with graphic display, automatic data logging, and USB export. It also integrates all critical alarms: high/low temperature, door open, probe fault, and power failure.
Compliant with requirements
The MFZ90-25A complies with DIN13277 - DX15140 standards and the ATEX directive, ensuring safe use in medical and pharmaceutical environments. It is equipped with a probe port (Ø 20 mm) and a dry contact for connection to centralized monitoring or alert systems. A 24-hour backup battery keeps the alarm and controller operational in the event of a power outage.
Storage reliability
The MFZ90-25A guarantees thermal stability of 0.3°C and temperature uniformity of ±1.9°C. It reaches -20°C in just 71 minutes and can maintain a temperature below -10°C for 61 minutes without power, ensuring the protection of stored products even in the event of a temporary power outage.
It is equipped with 3 full perforated aluminum shelves and a reversible door system with automatic closing at <90° and hold open >90°, ensuring both ergonomics and safe access.
Technical Specifications
- Gross/Net Volume: 90 L / 76 L
- Temperature Range: -5°C to -25°C
- Average Temperature: -24.1°C | Stability: 0.3°C | Uniformity: ±1.9°C
- Downtime: 71 min at -20°C
- Maintain at -10°C: 61 min without power supply
- Consumption: 1.1 kWh/24h (at -25°C)
- Noise level: 45 dB
- Refrigerant: R600a – 47 g
- External dimensions: 825 × 595 × 642 mm
- Internal dimensions: 676 × 475 × 395 mm
- Internal equipment: 3 solid aluminum shelves Perforated
- Controller: i-Care touchscreen with curve, USB, alarms
- Certifications: DIN13277 – DX15140 | ATEX
Other options available
The MFZ90-25A is available with optional casters for added flexibility. It can also be integrated into multi-unit installations or coupled with temperature recorders. For any specific requests or custom projects, contact us.
Door open alarm
Probe failure alarm
Power failure alarm
