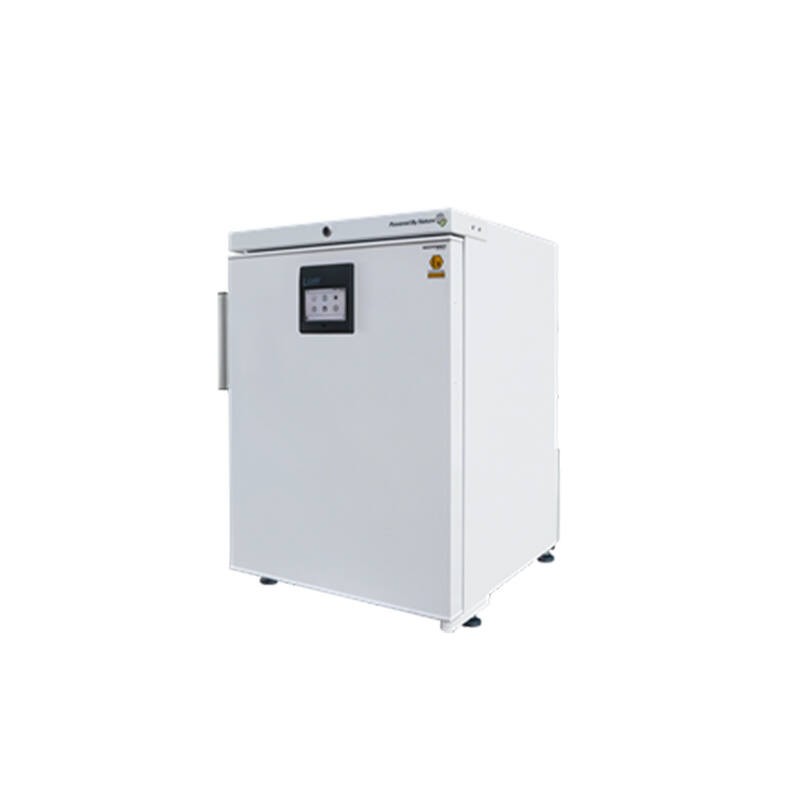

The MFZ138-25A is a compact biomedical freezer designed for the secure storage of temperature-sensitive products in space-constrained environments. Thanks to its small size and 117-liter capacity, it can be installed on a work surface or bench for quick access in laboratories, pharmacies, hospital wards, or preparation areas.
Features and Functions
The MFZ138-25A is equipped with a variable-speed compressor (Adaptive Cooling Technology) and a No-Frost® fan-assisted cooling system, ensuring uniform temperature distribution throughout the enclosure. The adjustable temperature range from -5°C to -25°C allows for optimal storage of a wide variety of biomedical products.
Its i-Care touchscreen controller provides an intuitive interface for parameter adjustment, real-time temperature display (in graphical form), data logging, and USB export. The system includes multiple safety alarms: temperature, door open, probe failure, and power failure.
Compliant with requirements
The MFZ138-25A complies with DIN13277 - DX15140 and ATEX standards, ensuring its safety for use in biomedical environments. It is equipped with a 24-hour backup battery for the controller, an integrated lock, a probe port (Ø 20 mm), a dry contact, and an automatic door closing system <90° (hold >90°).
Storage reliability
The MFZ138-25A offers excellent thermal stability (±0.3°C) and temperature uniformity of ±1.4°C. It reaches -20°C in just 70 minutes and can maintain a temperature below -10°C for 61 minutes in the event of a power failure, ensuring the protection of sensitive samples.
Its compact design does not affect its performance: the model is also equipped with a hot gas perimeter heater to prevent condensation and ensure a hermetic seal under all circumstances.
Technical Specifications
- Gross/Net Volume: 138 L / 117 L
- Temperature Range: -5°C to -25°C
- Average Temperature: -24.4°C
- Uniformity: ±1.4°C | Stability: 0.3°C
- Drop-down time: 70 min at -20°C
- Maintained at -10°C: 61 min without power supply
- Consumption: 1.419 kWh/24h (at -25°C)
- Noise level: 45 dB
- External dimensions: 825 × 595 × 642 mm
- Internal dimensions: 676 × 475 × 495 mm
- Shelves: 2 full + 1 half | Perforated Aluminum
- Refrigerant: R600a - 43 g
- Certifications: DIN13277 - DX15140 | ATEX
Other Options Available
The MFZ138-25A is also available with casters (optional) for easy mobility. For other sizes or specific features (glass doors, reinforced ATEX versions, home automation integration), contact us to discover the options compatible with your professional environment.
Door open alarm
Power failure alarm
