Features and Functions

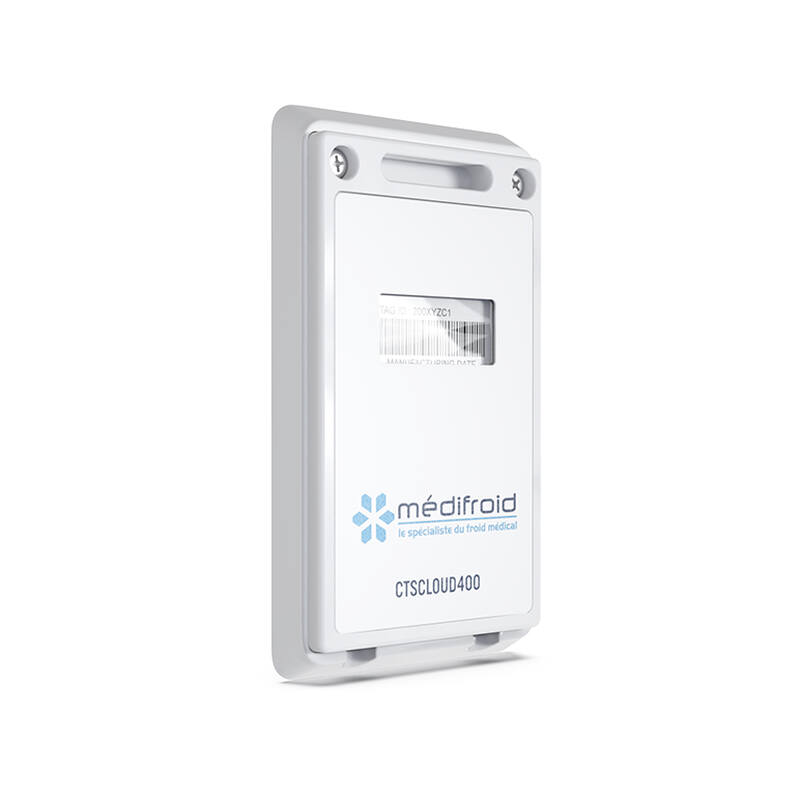

The CTSCLOUD400 is a compact, standalone data logger designed for real-time traceability of temperature and humidity in the cold chain. Equipped with an internal battery and advanced technologies such as radio frequency (RF) and NFC, it enables reliable, continuous, and secure monitoring.
Using RF technology, the data logger automatically transmits its data up to 700 meters in open space to a compatible hub (such as the CTSCLOUD200). It can also be accessed manually via any NFC-enabled Android/iOS device, without a wired connection.
Data is recorded in the 5,000-point internal memory and transmitted to the Médifroid secure cloud, where it can be accessed in the form of tables, graphs, PDF, or CSV files. The CTSCLOUD400's compact size allows for direct integration into boxes, containers, or pallets.
Compliant with requirements
The CTSCLOUD400 is designed to meet the traceability requirements imposed by good practices for the distribution and storage of healthcare products, particularly temperature-sensitive products. Thanks to its cloud interface and its accuracy, it is a reliable tool for ensuring regulatory compliance in the pharmaceutical, hospital, and logistics sectors.
Reliable Traceability
The CTSCLOUD400 uses an HTTPS protocol with SSL certificate to guarantee the security and integrity of transmitted data. It allows you to configure measurement intervals (15 minutes by default) and issue alerts if thresholds are exceeded. It can be used alone or integrated into a complete system with an RF hub (e.g., CTSCLOUD200).
Thanks to integrated NFC technology, it offers a fast and flexible solution for spot temperature or humidity checks without specific installation, thus reinforcing the continuous monitoring required at step 3 of the cold chain: traceability.
Technical Specifications
- Temperature: -30°C to +70°C
- Humidity: 0% to 100%
- Accuracy: ±0.2°C (0 to 30°C); ±0.5°C above | Humidity ±2% (20-80%)
- Resolution: 0.1°C
- Measuring interval: 15 min (other settings on request)
- Memory: 5,000 records with automatic renewal
- RF technology: 869 MHz (Europe), 920.9 MHz (USA, Asia)
- RF range: up to 700 m in open field
- NFC technology: Yes, Android/iOS compatible
- Dimensions (with stand): 103 × 60 × 12 mm
- Power supply: Internal battery
Other options Available
The CTSCLOUD400 is compatible with CTSCLOUD200 2G hubs and can be integrated into multi-logger kits. For any specific needs (number of devices, measurement frequency, integration into a fleet), contact us for a customized solution.
