Features and Functions

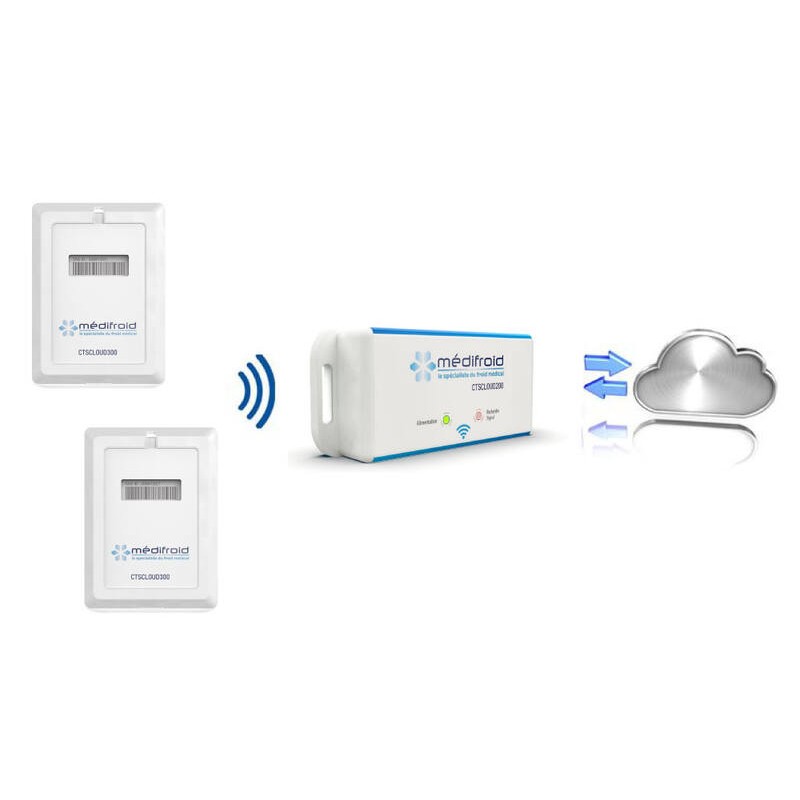

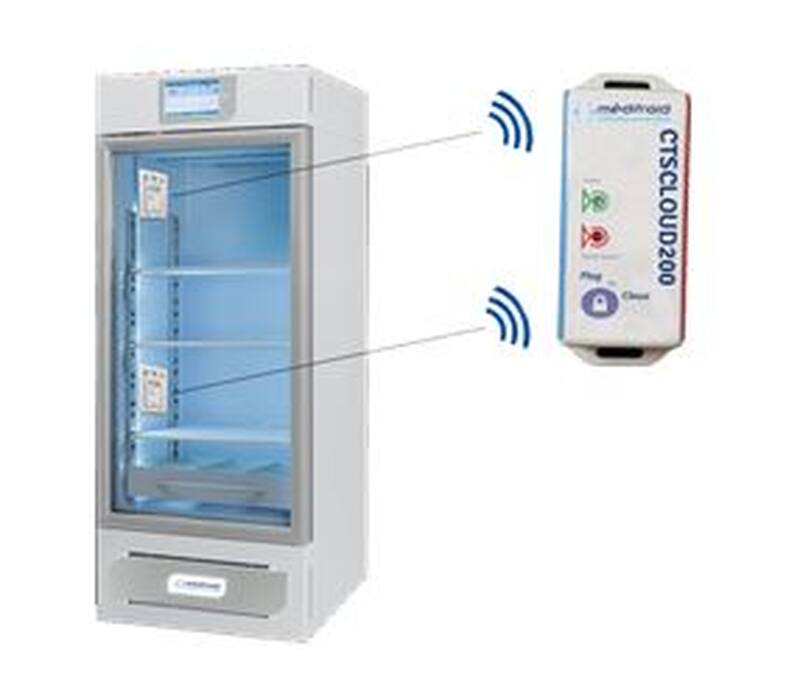

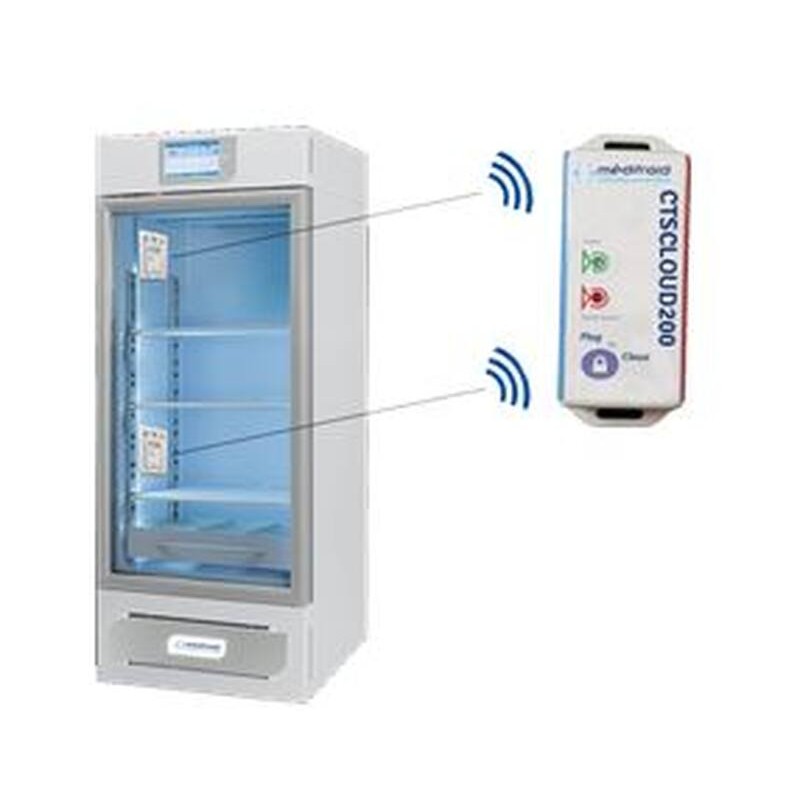

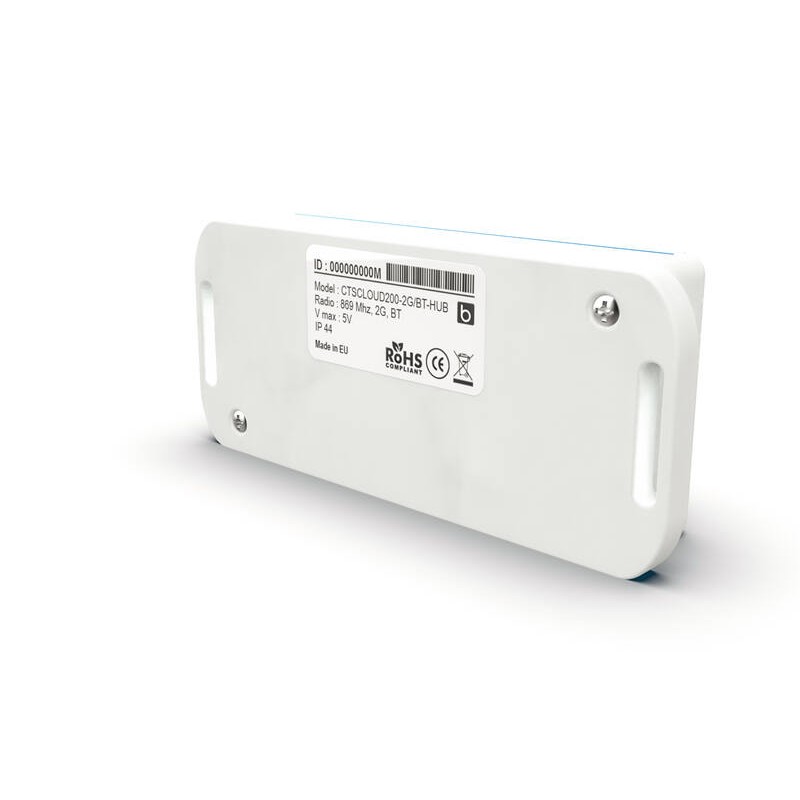

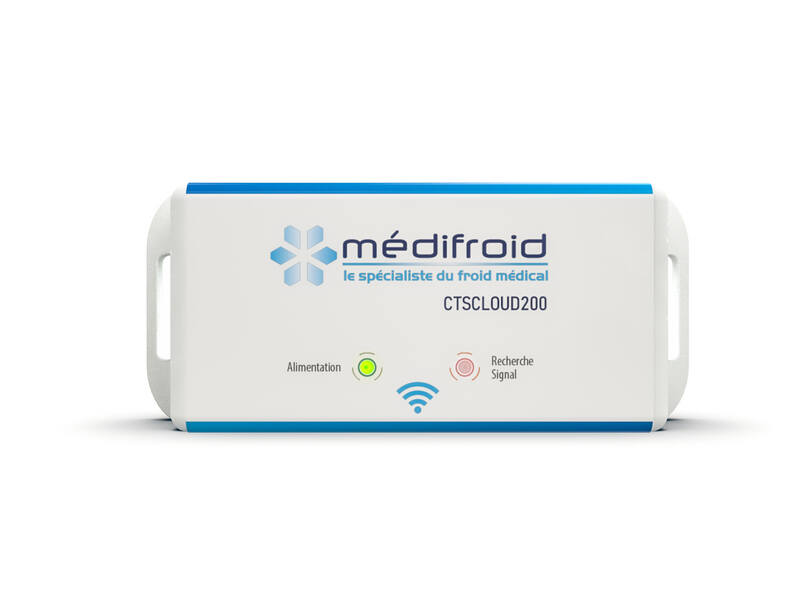

The CTSCLOUD200 is a 2G transmission hub specifically designed for collecting and transmitting temperature data in real time via radio frequency. It works with CTSCLOUD300 data loggers installed in one or more refrigerated enclosures.

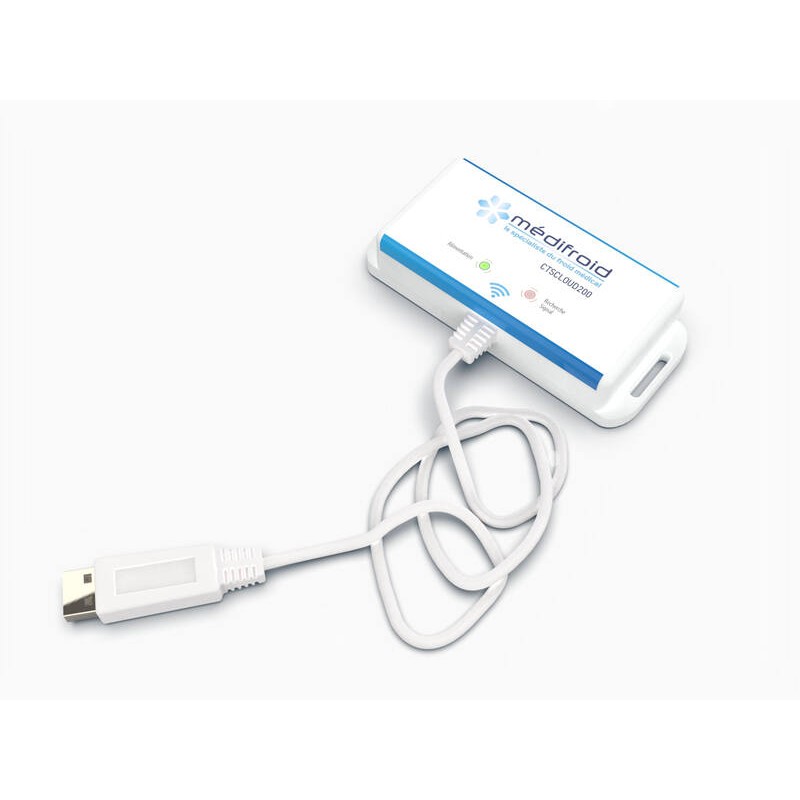

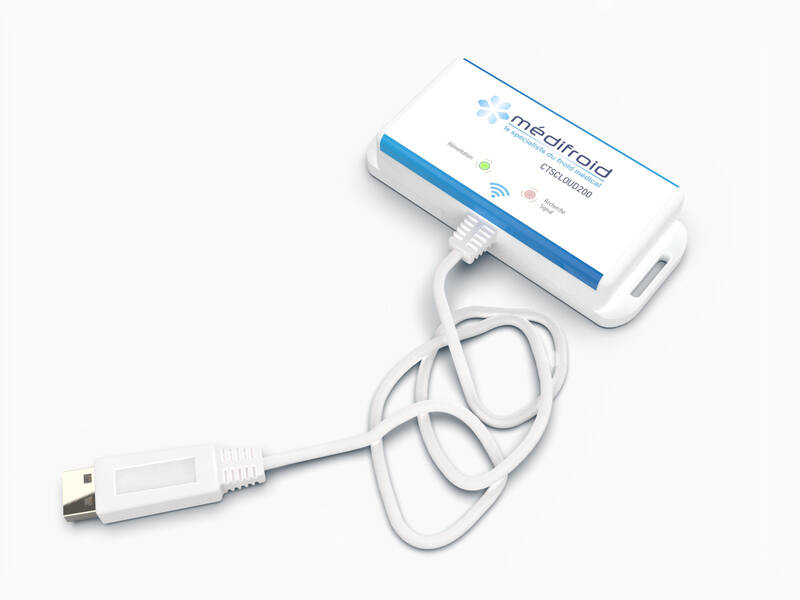

Compact and easy to integrate, it allows continuous monitoring of temperature-sensitive products stored in refrigerated equipment. It has an operating range of -40°C to +60°C and an internal memory of 5,000 measurements. It is mains powered (USB cable included) and ensures transmission to a secure cloud platform, accessible via computer or smartphone.
Compliant with requirements
The CTSCLOUD200 hub is part of a compliance with best traceability practices for temperature-sensitive healthcare products. It meets the needs of healthcare professionals, pharmacies, hospitals, and laboratories, who must ensure permanent monitoring of storage temperatures.
Reliable traceability
The CTSCLOUD200 ensures automatic and secure data transmission to the Médifroid platform servers. Thanks to an intuitive and password-protected cloud interface, users can view their data in real time, generate PDF, CSV or graphical reports, and track the geolocation of equipment.
The system can send 24/7 alerts if thresholds are exceeded, thus ensuring maximum responsiveness in the event of thermal drift. This is an essential tool for step 3 of the cold chain: traceability.
Technical Specifications
- Temperature range: -40°C to +60°C
- Measurement interval: 10 minutes
- Memory capacity: 5,000 measurements
- Data retention time: 3 years
- Resolution: 0.1°C
- Accuracy: ±0.2°C (between 0 and 30°C)
- Protection class: IP64
- Dimensions: 97 × 40 × 20 mm
- Compatibility: CTSCLOUD300 (RF recorders)
- Complete kit available: CTSCLOUD100 (2 CTSCLOUD300 recorders + 1 CTSCLOUD200 hub)
Other options available
This model can be integrated into multi-equipment kits for simultaneous monitoring of multiple speakers. For any customization, contact us to adapt the solution to your specific needs.
